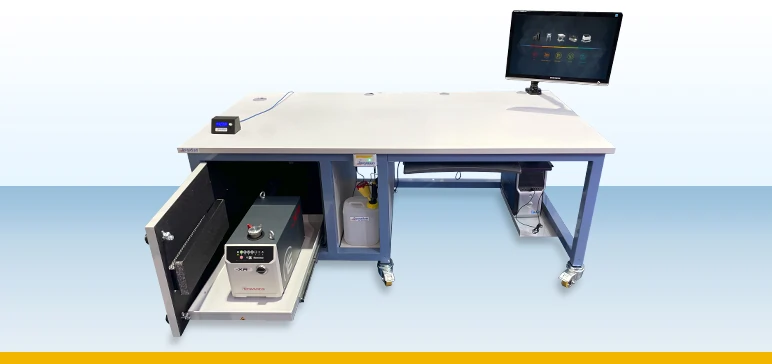

Noise protection
Sonation offers sound insulation solutions for all common noise sources in the laboratory. With the different models, almost any device can be insulated.
The Sonation SSH series
Our sound protection hoods of the SSH series are designed for the insulation of backing pumps, as they are often used in analytical laboratories. Designed to meet a wide range of needs, our models can insulate virtually any piece of equipment.
Learn how Sonation products can improve your lab environment and how they are manufactured.
Noise protection in the workplace is becoming increasingly important. Whereas laboratories used to be rather quiet workplaces, they now contain a large number of devices, some of which cause immense noise levels. The most common sources are vacuum pumps, ultrasonic cleaning devices and water coolers. In the worst case, the noise can have a detrimental effect on health. But even lower noise levels significantly impair the ability to concentrate. Especially in scientific work, however, a high level of concentration is crucial. Sonation offers appropriate sound insulation solutions for all common noise sources in the laboratory.
With the different models, almost any device can be insulated. If a device does not fit into one of the series products, special designs with customer-specific dimensions are also possible.
With the different models, almost any device can be insulated. If a device does not fit into one of the series products, special designs with customer-specific dimensions are also possible.
General information
APPS
The temperature and operating data monitoring module APPS (Active Pump Protection System) enables you to perfectly protect your sensitive and important equipment. All important operating data such as temperature, current consumption and the function of the fans are constantly monitored. In case of an error, an optical and acoustic warning is given.
The temperature and operating data monitoring module APPS (Active Pump Protection System) enables you to perfectly protect your sensitive and important equipment. All important operating data such as temperature, current consumption and the function of the fans are constantly monitored. In case of an error, an optical and acoustic warning is given.
Try before buy
We will gladly supply you with a demonstration unit to try out. If you are not satisfied with the sound protection hood, you can return it without any further obligations.
Insulation
The insulation material used is oil and water repellent as well as flame retardant according to FMVSS 302 and DIN 75 200.
Ventilation and cooling
Fans trimmed for noise minimization are used to dissipate the pump waste heat. The air ducting inside the box is designed to provide optimum cooling for the pump, yet prevent sound from entering through the air inlet and outlet openings.
Sound insulation
The sound reduction is up to 16dB(A) which corresponds to a reduction of about 80% of the perceived loudness.
Accessibility
To gain access to the pump, e.g. to read the oil level, the front can be removed and reattached with a flick of the wrist using quick-release fasteners.
Flexibility
The sound protection hoods are equipped with pump-specific cover plates. These cover plates allow the sound protection hood to be adapted to the respective pump type. If a different pump is to be insulated, only the cover plate needs to be replaced. Thanks to magnetic locking, the cover plates can be removed quickly without tools.
Flange kits
With some sound protection hoods, it makes sense to extend the pump connections for vacuum and/or exhaust connections. This allows attachments such as oil mist filters or similar to be connected outside the sound protection hood. For this purpose, we offer flange kits in various sizes and lengths.
Left picture without sound protection hood - Right picture with sound protection hood
Comparison of noise levels
The two pictures show the noise of a backing pump broken down into the individual frequencies. The left picture shows the noise without sound protection hood, the right picture the significantly reduced noise with sound protection hood.
Product information folder - Noise protections
PDF (0.74 MB)
Solutions for special applications
In addition to many standard models in different sizes and with different functions, we also offer special designs entirely according to your wishes and the requirements of your project. If you have any question about this or would like to discuss an already specific request with us, please contact us or send us an inquiry directly. In direct consultation with you we will find a customized solution.
Sound enclosure suitable for the Fritsch Pulverisette P7 Planetary Micro Mill
SSH-SE-PS2
This sound enclosure is a custom-made product, which was specially developed for the P7 Pulverisette.
Technical data:
Dimensions [mm]:
Outside: 620x450x800mm (WxHxD)
Interior: 502x405x685mm (WxHxD)
Weight [kg]: 32
Insulation [dB(A)]: 20
Insulation material: 40mm PUR foam.
Surface: Oil and water repellent.
Ventilation: Speed-controlled fans with overtemperature monitoring.
Power supply: 100-240V AC (50/60Hz)
Sound enclosure suitable for Edwards iXH610 vacuum pump
SSH-SE-PS2
The SSH-SE-PS2 is a custom design developed specifically for the Edwards iXH610 vacuum pump.
Technical data:
Dimensions [mm]:
Outside: 650x1040x1200mm (WxHxD)
Interior: 550x830x1100mm (WxHxD) (height from collection tray)
Insulation material: 40mm PUR foam.
Surface: Oil and water repellent.
Expected noise reduction: About 75%.
Flammability:
- Meets FMVSS 302 or DIN 75200.
- ISO 3795, burning rate < 100mm/min.
Further features:
- Powder coated steel tube frame, 50mm.
- Inset removable soundproof panels, on all sides, top and bottom.
- Front and back designed as doors.
- Two-piece removable top cover.
- Side panels removable by quick release fasteners.
- Heavy duty casters with brakes.
- Integrated stainless steel drip tray.
- Vibration decoupling via four dampers.
- Intake air via front air inlets, exhaust air via 100 mm flange in cover.
- Feed-throughs for control panel cable, vacuum flange, exhaust flange, nitrogen line, power cable and hoses for cooling water.
- Temperature monitoring with overtemperature alarm.
- Integrated liquid / oil leakage sensor with alarm.
Sound enclosure for an OLV Screwline SP630F pump
SSH-SE-SL01
The SSH-SE-SL01 is a custom design developed specifically for an OLV Screwline SP630F pump.
Technical data:
Dimensions [mm]:
Outside: 800x1300x2120mm (WxHxD).
Inside: 700x1250x2020mm (WxHxD)
Insulation material: 40mm PUR foam, fleece laminated.
Surface: oil and water repellent.
Fire behavior:
- Meets FMVSS 302, DIN 75 200.
- ISO 3795, burning speed < 100mm/min
